Lifting Equipment for the Oil and Gas Industry

Even under extreme operating conditions, J.D. Neuhaus hoists and cranes reliably move loads and are up to the job.

Website
www.jdngroup.com
Email Address
info@jdngroup.com
Address
58449 Witten,
Germany
Phone
+49 2302 2080
Fax Number
+49 2302 208286
Share
hydraulic crane

Even under extreme operating conditions, J.D. Neuhaus hoists and cranes reliably move loads and are up to the job. They are in use in more than 70 different sectors, and are particularly in demand in the oil and gas exploration and processing sectors, in mining, heavy plant construction and the chemical industry.

Recommended Buyer's Guides

At its Witten plant, J.D. Neuhaus produces pneumatically and hydraulically-operated hoists and crane systems. Thanks to this globally unique specialisation, JDN is not only a recognised expert in this field, but also the world market leader, with customers in more than 90 countries around the globe. Being a family company in our seventh generation – founded in 1745 – we offer guaranteed consistency and quality.

Lifting equipment: standard features and benefits

  • Safety factor 5:1
  • Tensile strength 3:1
  • Tracebility by JDN unique parts marking system
  • Overload adjustable from 90% to 125%
  • True vertical lift
  • Self-adjusting fail safe brake
  • Integrated overload protection system from 1t upwards (EU version)
  • (EU version)
  • High performance multi-vane air motor with self-lubricating features and positive start-up system for a
  • smooth start and consistent operation
  • Explosion proof / spark resistant
  • Ex-classification: Ex II 2 GD IIA T4/Ex II 3 GD IIB T4
  • Temperature range: -20°C to +70°C
  • ISO/FEM rating hoist: M3 (1 Bm)
  • ISO/FEM rating chain: M3 (1 Bm)
  • Trolleys with anti-drop and anti-climb devices
  • All-steel cast iron construction
  • Worldwide service
  • ISO 9001
  • ISO 14001

BOP handling systems

J.D. Neuhaus BOP handling systems are known for their reliable, robust and efficient operation on land, jack-up and semi-submersible drilling rigs. They have carrying capacities from 20t up to 200t.

The monorail hoists (EH) in our BOP handling systems feature a compact design with low headroom. They can be used as double lifting gear as in standard BOP handling systems or they can be connected by a coupling rod for use as a four-point BOP handling system. For extremely reduced spaces we recommend our ultra-low monorail hoists of the UH series.

JDN Monorail Hoist EH 25.
JDN ultra-low monorail hoist for BOP handling systems.
JDN hydraulic crane, SWL 80t.
JDN PROFI 6 TI Subsea.
JDN hydraulic monorail hoist EH 20 for cryogenic applications.

Air and hydraulic-driven cranes and kits

JDN offers air and hydraulic-driven cranes suitable for working in hazardous areas as standard. The programme includes explosion-proof:

  • Overhead travelling cranes
  • Underslung cranes
  • Slewing jib cranes

Subsea hoists

The JDN PROFI Subsea series is available with air or hydraulic drives. As well as a sensitive control system, the PROFI hoists are equipped with an overload protection. PROFI subsea hoists are a versatile and indispensable tool for professional divers and are suitable for horizontal work as well as for oblique pulling.

Cryogenic hoists for BOP handling in arctic areas

The temperature range of standard JDN hoists is -20°C to +70°C. JDN has developed hydraulic hoists for applications at temperatures as low as minus 45°C, such as BOP handling in arctic areas. JDN hydraulic hoists are designed to be operated with low-temperature hydraulic fluids and can be operated efficiently at temperatures from -45°C to +40°C.

Regulations

  • DNV-OS-E101 – Drilling plant, October 2006
  • FOR 1994-08-19 nr 820: Forskrift om maskiner

Design codes and standards

  • DNV-OS-C101 – Design of Offshore steel Structure, General (LRFD Method), October 2008
  • DNV 2.22 – Lifting Appliances, October 2008
  • DNV-RP-C205 – Environmental conditions an environmental loads, April 2007
  • DNV-OS-C103 – Structural design of column stabilised units (LRFD Method), October 2008
  • FEM 1.001 – Rules for the design of Hoisting Appliances 1998.10.01
  • Norsok R-CR-002 – Lifting equipment, January 1995
  • Eurocode 3: Design of steel structures – Part 1-8: Design of joints, 16 April 2004

Notes

  • Fabrication to comply with Norsok M-101
  • Painting/Coating: Norsok M-501 Coating sys. no.1
  • Sharp edges, fillets, corners and welds shall be rounded, minimum radius 2mm
  • Material certificates acc. to NS-EN 10204. 3.1b or equal
  • Material traceability required
  • Welding by certified welders
  • NDT requirements acc. to DNV 2.22 Lifting Appliances: All members are considered to be primary structure

White Papers

  • Engineered for Extremes

    When Johann Diederich Neuhaus built his first wooden shaft winch in 1745, he presumably had no idea how decisive it would later become for the effortless movement of heavy loads.

  • JDN General Catalogue

    At its Witten location, J.D. Neuhaus, with 150 employees, produces hoists and crane systems which are mainly driven by compressed air.

Press Releases

  • Hoist Trolleys Provide Safe Load Movement

    When specifying a hoist for use in industrial applications that demand beam-traversing motion, attention should also be paid to the trolley on to which the hoist hooks.

  • Hoists Deliver Elevated Performance in the Process Industry

    The versatility and performance of the latest Profi TI series air hoists from J D Neuhaus (JDN) ensure their suitability for a wide range of applications in the process industry, from food, beverage and packaged goods, to chemical, pharmaceutical and biotech.

  • Clean, Safe & Hygienic Materials Handling

    Materials handling specialist J D Neuhaus (JDN) can provide a whole host of innovative hoist solutions for working environments that demand high levels of cleanliness and hygiene.

  • Nickel-Plated Hoists Suitable For Hygienically Critical Areas

    Selected models from the J D Neuhaus range of air-operated hoists and trolleys are now available for clean room operations and other specialist applications that also require hygienic working conditions. These include chemical and pharmaceutical production establishments, together with the food and drink industries, covering all aspects of both handling and manufacture.

  • Hoists and Cranes: Captains of Industry

    The importance of an ever-expanding industrial world should not be underestimated. After all, long-term, sustained industrialisation is a key driver for economic development, a fact recognised by the world's most important leaders.

  • J D Neuhaus At Your Service

    The specialised high-performance handling products manufactured by J D Neuhaus (JDN) are engineered for extremes, and are suitable for operation within chemical, oil and gas and general industries involving hazardous working areas, including those subject to potential explosion risks.

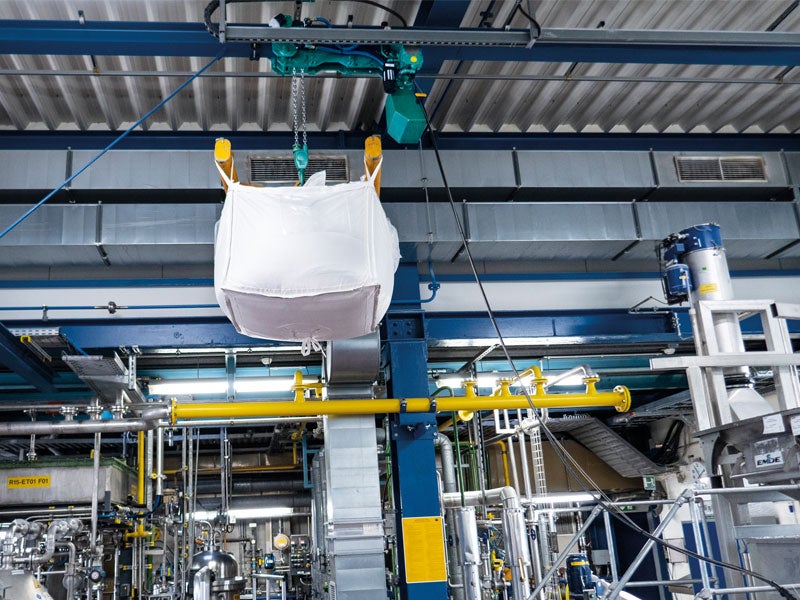

  • Process Technologies Boosted With Big-Bag Handling
