Vacuum Drying Specialist for the Production of APIs, Fine Chemicals and Intermediates

Italvacuum is one of the best-known European manufacturers of vacuum dryers and vacuum pumps for the chemical, pharmaceutical and cosmetics industries.

Address
Headquarters and Manufacturing Plant,
Via Stroppiana 3,
Borgaro (Turin),
I-10071,
Italy
Phone
Fax Number
Share
Italvacuum lead

Italvacuum is one of the best-known European manufacturers of vacuum dryers and vacuum pumps for the chemical, pharmaceutical and cosmetics industries.

Thanks to more than 80 years of experience, Italvacuum has developed a wide range of original and patented products, that comply with the main European regulations (EC, ATEX and PED) and with the increasingly severe FDA rules and cGMP norms.

Paddle vacuum dryers with eccentric agitator (Planex System®)

Planex System is a multi-patented technology designed to overcome the limits of traditional paddle vacuum dryers. The technology is based on a revolutionary philosophy of working, and is suitable for the production of APIs and fine chemicals.

Added-value of Planex System is the eccentric agitator with two independent movements, that can simultaneously revolve around its own axis and rotate tangentially to the drying chamber.

Italvacuum's Planex System with eccentric agitator with two independent movements.
Italvacuum’s Planex System - eccentric agitator profile.
Italvacuum's CRIOX System: multi-product, versatile, profitable and safe.
Italvacuum's CRIOX System: lump breakers and port-lid detail.

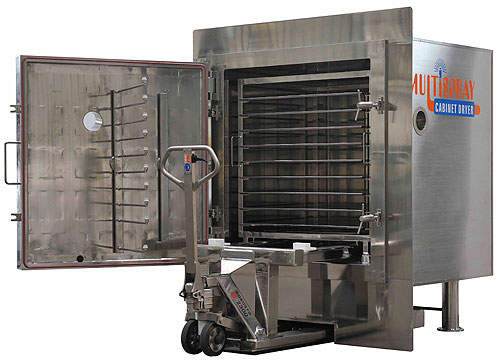

Italvacuum's MULTISPRAY® Cabinet Dryer: model with extractable plates.

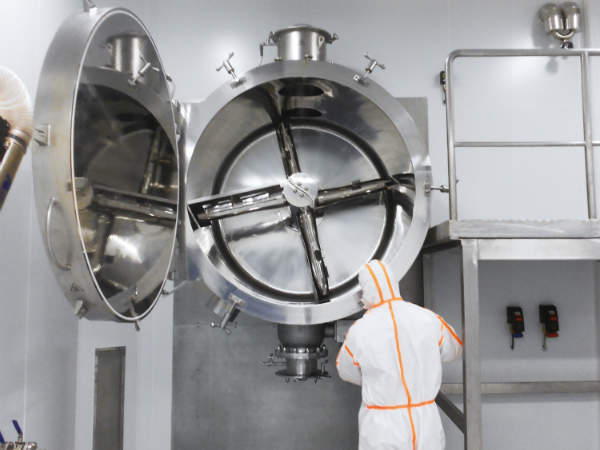

Clean room installation of the CosmoDry System.

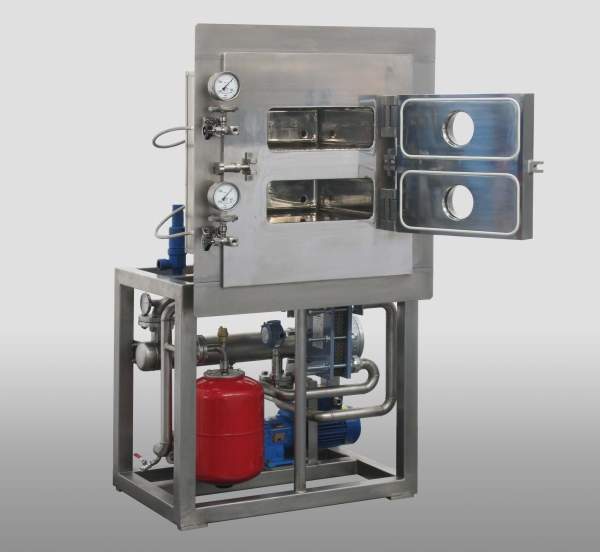

The LaboDry laboratory scale vacuum tray drying oven.
Italvacuum's TUMBLE Dryer ensures a uniform final blend in terms of both viscosity and residual humidity.
Italvacuum's Saurus939 vacuum pump.

The combined rotations of the agitator and its small size compared to the drying chamber diameter, ensures perfect mixing of the entire batch. It also consumes at least three times less energy than conventional dryers, which means a threefold reduction in mechanical and thermal stresses on the batch being dried.¹

As a result, even delicate and temperature-sensitive products are treated with maximum care.

The Planex System control software allows automatic command of the agitator movements with the Stop and Swing program.

The agitator swings back and forth, remaining immersed in the product at all times, and guaranteeing continuous mixing, which is particularly effective when processing small batches.

In addition, Planex System, due to its agitator’s ZeroFriction planetary movement, prevents the product from being rubbed against the drying chamber walls and heating up due to friction, a typical problem in conventional paddle systems.

Rotation of the paddles tangentially to the chamber walls conveys the product into the small clearance between the agitator and the chamber surface, preventing lumps formation. It also guarantees effective drying and a controlled final particle size distribution, which is impossible to achieve with conventional paddle dryers.

Multi-product rotary vacuum dryers (CRIOX System)

CRIOX System, an international patent with more than 400 units operating in more than 30 countries, is a multi-product dryer capable of total extraction of all types of solvents from the wet powders coming from filtering or centrifuge.

The central body is made of a double cone, characterised by soft lines. During the system rotation, this structure helps the continuous revolution of the mass and allows a homogenous and delicate mixing.

Within the drying chamber there are two electric lump-breakers that not only break the eventual pre-existing agglomerates in the wet powders thus preventing the forming of lumps, moreover they also allow for grinding and powdering during the last drying phase, limiting and in some cases avoiding the use of the mill. This helps having bulk products ready for bagging or powders with checked final particle size distribution, where the next operation is often limited to a sifting phase.

The mechanical action of the chamber and the lump-breakers allow the surface of the product exposed to evaporation to be increased and therefore the vacuum drying is carried out in a very short time and with a temperature much lower than in any other dryer. Specific solutions have been developed for automatic loading and unloading and also in order to wash and inspect the plant before changing the type of batch.

Vacuum tray dryers (MULTISPRAY® Cabinet Dryer)

The MULTISPRAY® Cabinet Dryer consist of a cabinet and a series of shelves heated through the circulation of fluid. The drying chamber is also heated in order to avoid condensation.The qualities that characterize MULTISPRAY® vacuum tray dryer are best results, ergonomics, safety and flexibility for any product batch.

But that’s not all, because the important added value that differentiates MULTISPRAY® innovative dryer from conventional systems is that it guarantees total cleanliness of the inner chamber and all heating plates, in compliance with the increasingly restrictive FDA standards and the cGMP standards of good manufacturing. In fact, thanks to the CIP MULTISPRAY® patented fast washing system, the equipment can be completely cleaned in just a few minutes, in a repeatable and certifiable way, minimising washing liquid consumption.

MULTISPRAY® vacuum tray dryers can be used in any type of application as there are two versions available, fixed plate and extractable plate, the latter particularly indicated for multiproduct usage.

In the extractable shelves version Italvacuum designed a special stainless-steel hydraulic trolley able to lift the shelves frame, ensuring a fast removal without efforts for the operators (no tracks are present inside the cabinet).

Paddle vacuum dryers with concentric agitator (CosmoDry® System)

CosmoDry System comprises a horizontal paddle vacuum dryer, which is equipped with a concentric agitator, and fitted with a heated shaft that is dismountable in different sections.

These features ensure easy internal cleaning, maintenance and inspection. It also reduces machine stops during changeover from one product batch to another, setting it apart from conventional paddle vacuum dryers.

In addition, special features of the agitator profile enable continual product stirring. Mechanical and thermal stress can be also limited, making CosmoDry System an ideal solution for treating thermo-sensitive products.

Rotary cylindrical vacuum dryers (TUMBLE Dryer)

The TUMBLE Dryer range of rotary cylindrical vacuum dryers is designed for drying, mixing and condensing operations in the manufacture of granulated plastic materials: chips, beads, slices, pellets, scraps, etc.

Laboratory-scale vacuum tray drying ovens (LaboDry)

LaboDry vacuum tray drying ovens are suitable for the production of highly active pharmaceutical ingredients (high-potency API) and for R&D activity.

Featuring separate cells construction with skid-mounted auxiliary accessories, these dryers are designed for glove box installation.

For what concerns the materials in contact with the product, LaboDry can be manufactured in AISI 316L (1.4404), AISI 904L (1.4539) and ALLOY C-22 (2.4602).

Vacuum pumps unique in reliability, performance and consumption (Saurus939)

Saurus939 is a simply designed machine, that combines traditional robustness and reliability with the most evolved technology. Ensuring total recovery of extracted solvents, even in severe operating conditions.

Saurus939 guarantees unrivalled performances in all the main chemical and pharmaceutical processes, such as drying, distillation, reaction and crystallisation:

  • Nominal flowrate upto 3,800m³/h
  • Vacuum level up to 0,03mbar.

Furthermore, Saurus939 has no fear of aggressive and corrosive solvents, powders and condensates, nor distillation by-products. But above all it does not fear confrontation because it is designed and manufactured to work 24 hours a day with minimum operating costs, thanks to a low-energy motor, oil consumption virtually eliminated with Lubrizero® System and easy, immediate maintenance.

Powerful, efficient, but absolutely safe: Saurus939 guarantees optimum safety through the whole process and complete purity of the final product. In other words, ensures an uncontaminated vacuum, as certified by a recent analysis issued by Politecnico di Torino².

Notes

  1. Analysis of ‘Politecnico di Torino’ University – Material Science and Chemical Engineering Department
  2. Material Science and Chemical Engineering Department
