GA Valves Ltd

Air Vent, Vacuum and Air Release Valves for Seawater Duty

GA Valves provide air valves, and air vent and vacuum solutions applications the oil and gas, petrochemical, marine and water utilities industries.

Website

www.gavalves.co.uk

Email Address

sales@gavalves.co.uk

Address

PO Box 5,
Brighouse,
West Yorkshire,
HD6 3UD,
Other,
United Kingdom

Phone

+44 1484 711983

Fax Number

+44 1484 719848

GA Valves provide air valves, and air vent and vacuum solutions applications in the oil and gas, petrochemical, marine and water utilities industries.

Air valves for the offshore sector

Offering a wide range of exotic materials, GA Valves specialises in valves to the offshore industry.

The company focuses on working with the client to finalise the specification and valve sizing and to ensure agreed deliveries, certification and documentation requirements are met.

Manufactured in the UK, GA Valves make components in various materials that give high protection in adverse environments associated with offshore applications, seawater, service or indeed any other arduous environments. These materials include super duplex, titanium, duplex, stainless-steel, 6Mo Hastelloy®, Monel®, Inconel®, aluminium bronze and gunmetal.

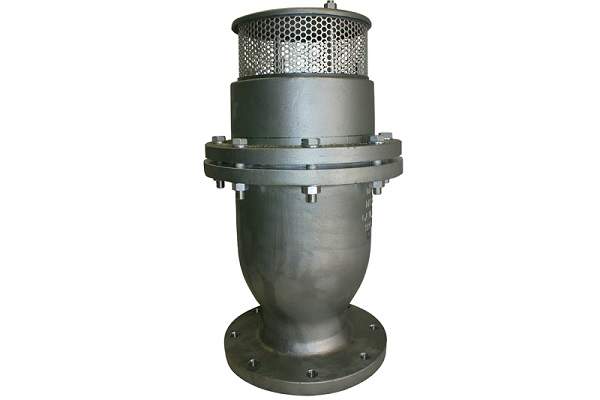

6in air vent / vacuum valve in super duplex with surge arrestor.

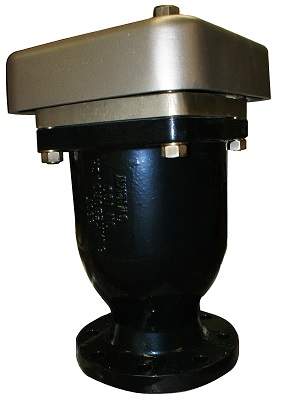

2in air vent / vacuum valve in Gunmetal.

1in air vent / vacuum valve in titanium with flanged outlet.

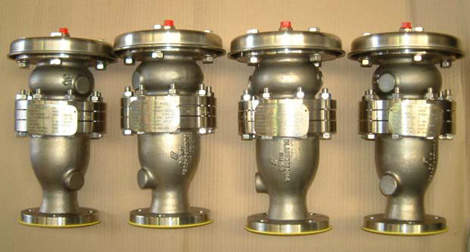

2in air vent / vacuum valves in Ali Bronze with inflow check device

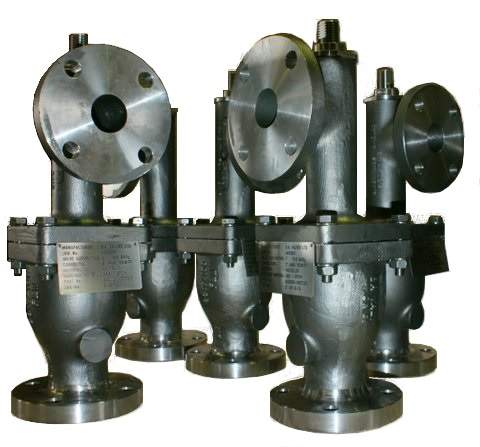

2in air vent / vacuum valves in Super duplex with flanged throttle device.

4in air vent / vacuum valve in aluminium bronze.

Class 300 air release valve in aluminium bronze with 1in flanged outlet.

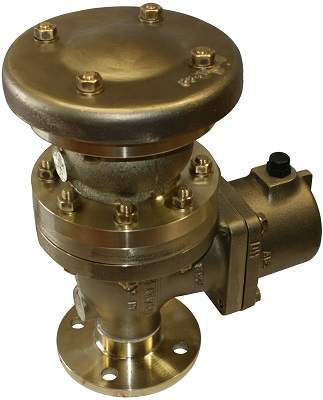

2in air release air vent / vacuum valve in aluminium bronze with inflow check device.

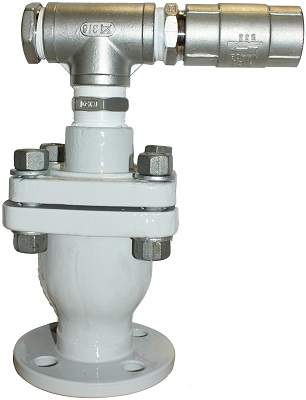

1in air vent / vacuum valve in stainless-steel and NORSOK-approved paint with outflow check device.

2in air vent / vacuum valve in super duplex with flanged throttle device and butterfly valve.

The company’s air valves come with a wide range of detailed material testing to meet each project requirement and are available with various functions, including:

Air release (small orifice)
Air vent and vacuum (bi-function)
Air release, vent and vacuum (tri-function)

Valves are customisable with options such as a variable throttle device to give adjustable venting control, an inflow and outflow check device for one-way airflow, and a flanged outlet for piping away facility.

Valves can be coated to suit specific applications with a choice of rilsan nylon, fusion-bonded epoxy or to the customer’s specifications and colours.

GA Valves also use UK foundries that are NORSOK M-650 approved and any raw materials are from within the UK and EU.

Isolation valves

Isolation valves can be supplied with a choice of ball, globe, butterfly or gate valves, with flanged or screwed connections to suit the air valves or individual use.

GA Valves is accredited to BS EN ISO 9001/2000 by Lloyds and complies with Achilles First Point Assessment (FPAL) for suppliers to the oil and gas industry.

Piston control valves

GA Industries USA manufactures a full range of pilot-operated differential piston control valves.

Pressure control valves

Dorot’s range of control valves includes pilot-operated diaphragm control valves for a wide range of applications and materials, including:

Pressure reduction, sustaining or relief
Flow/level control
Solenoid-operated
Deluge
Combination of any of these functions

Fire protection control valves

GA Valves offers a full range of fire protection control valves for use on any water supply application, including water flow for deluge, pre-action or foam-water type sprinkler systems.

Custom-built valves and special UV-protected coatings are also available.

White Papers

Complete Valve Solutions

With more than 26 years enviable experience in the UK and overseas markets, GA Valves Sales provides a comprehensive package in design, manufacture and distribution of a range of engineered waterworks valves and associated ancillary equipment to the water process and allied industries.
Air Valves for Offshore and Seawater Applications

Air Valves for Offshore and Seawater Applications

Press Releases

GA Valves Releases Free White Paper

Air valves are often overlooked with little thought going into them; however they play an important part within offshore systems. They are normally required on piping systems to either vent air from a pipeline or admit air back into the system under vacuum conditions. For the water indus
GA Valves Deliver Large Air Valves to Yemen LNG Project

GA Valves have successfully completed the delivery of 40-no, 6in aluminium bronze air valves to the Yemen LNG project. GA Valves worked inconjunction with Technip and Yemgas to ensure the air valves were to the correct specification, and that the in-depth documentation was completed at the releva
Fire protection valves

GA Valves can now offer a full range of fire protection control valves for use on any water supply application, including water flow for deluge, pre-action or foam-water type fire protection sprinkler systems. Valves to customer specification and special UV protected coatings can also be offered.
